USB 3.0(A) To USB3.0(B)橋接器是一款便捷式橋接器,能夠快速橋接不同接口的USB設備 |
功能 | ||
采用單向傳輸控制技術確保了橋接設備的數據被讀取的同時不被肆意篡改,同時保護了涉密計算機不會通過橋接設備泄露數據。 精致小巧,攜帶方便,具有一鍵升級功能,使用方便快捷,無需安裝驅動,即插即用。 |
規格 | ||

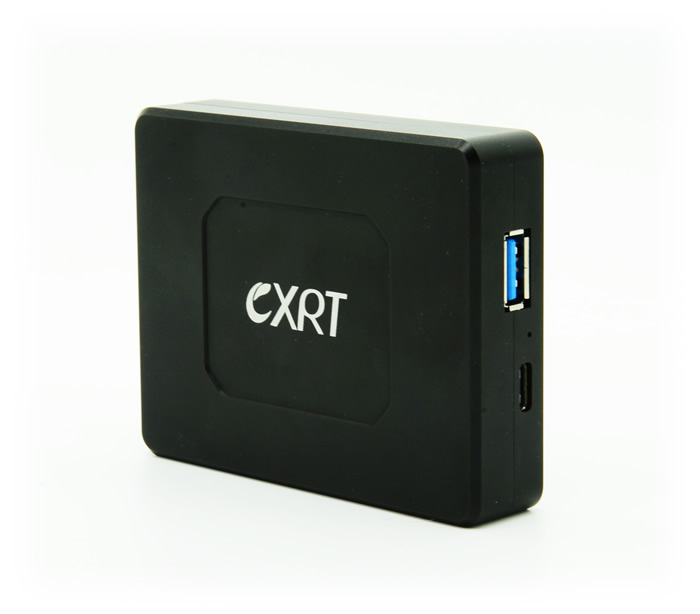

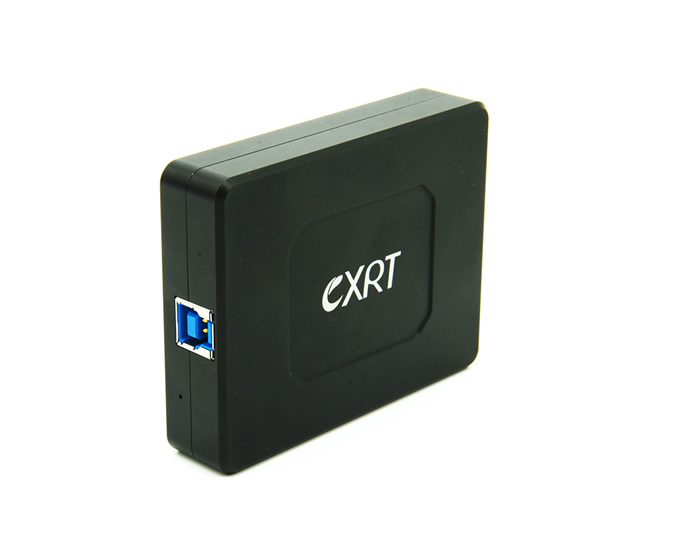

![]() usb 3.0 標準-a型(母)接口*1 Type-c接口*1 狀態指示燈*1 連接器: 主機 (右) 側 usb 3.0 標準-b型(母)接口*1 一鍵升級按鈕*1 |
兼容性 | ||
兼容USB 3.0、USB 2.0主機設備 兼容Windows 10、Windows 8.1、Windows 7、Windows XP和大多數Linux操作系統等。 |
電源 | ||
標準USB(5V @ 0.5A-1A)供電 |
尺寸 | ||
91mm * 71mm * 21mm |
重量 | ||
230g |
工作溫度范圍 | ||
0至55°c (無氣流) |
貯存溫度范圍 | ||
-20 到60°c |
相對濕度 | ||
高達 90% (無冷凝) |
USB 3.0 (a) to USB3.0 (b) bridge |
Description | ||
USB 3.0 (a) to USB3.0 (b) bridge is a convenient bridge connector, can quickly bridge the different interface of the USB device. |
Function | ||
Using one-way transmission control technology to ensure that the bridge equipment data is read without being arbitrarily rewritten, while protecting the secret computer will not pass the bridge equipment leakage data. Exquisite compact, easy to carry, with a key upgrade function, easy to use, without installation drive, Plug and play. |
Specifications | ||
Connectors: Host (left) side USB 3.0 Standard-a type (mother) interface $number Type-c Interface $number Status indicator $number Connectors: Host (right) side USB 3.0 Standard B-type (mother) interface $number One-click upgrade button $number Compatibility: Compatible USB 3.0, USB 2.0 host device Compatible with Windows 10, Windows 8.1, Windows 7, Windows XP, and most Linux operating systems. |
Power | ||
Standard USB (5V @ 0.5a-1a) power supply |
Size | ||
91mm * 71mm * 21mm |
Weight | ||
230g |
Operating Temperature range | ||
0 to 55°c (no airflow) |
Storage Temperature Range | ||
-20 to 60°c |
Humidity | ||
Up to 90% (non-condensing) |
